Re: Antw: syncrepl error (53) with 3-way delta-mmr (consumer state is newer than provider)

[Sven Mäder <maeder@phys.ethz.ch>]

On 09/04/2017 08:51 AM, Ulrich Windl wrote:

Sven Mäder <maeder@phys.ethz.ch> schrieb am 01.09.2017 um 16:53 in

Nachricht
2832441b-362f-9429-8c56-32995cff5ef1@phys.ethz.ch"><2832441b-362f-9429-8c56-32995cff5ef1@phys.ethz.ch>:

Hi Ulrich

Thank you for your response.

On 08/31/2017 09:37 AM, Ulrich Windl wrote:

Hi!

Some of the time ntpd needs to sync may be host name resolution (if you

use

names). Methods to speed up initial synchronization inlude "iburst",

"minpoll"

and adding a large crowd of servers. Note that reducing minpoll could

reduce

the final accuracy (just as increasing "maxpoll" does). Depending on your
network and load I would not rely on a time offset less than a few ten
milliseconds. How well LDAP can operate then is a different question.

We have 2 timeservers (stratum 1) in our local net with gps clock source:
server time1.phys.ethz.ch minpoll 4 maxpoll 10 iburst
server time2.phys.ethz.ch minpoll 4 maxpoll 10 iburst

minpoll is already set at its lowest value, although I do not understand
what this option does. I may increase its value, increasing accuracy sounds
good.

The manual explains what "minpoll" does. Basically it is the starting poll
interval. Short values cause adjustment to be made faster than nomal. However
if subsequent polls fail, the clock could continue to run with wrong correction
values and the accumulate some time error (i.e. make things worse). A big
maxpoll might not correct he clock in time. And you probably should have an odd
number of time servers.

Reading the correct manuals helps, looks like the debian manpages are
outdated (ntp version 1:4.2.8p10+dfsg-3) compared to the manpages of
the upstream source tarball (ntp-4.2.8p10.tar.gz) and to the manuals
on http://doc.ntp.org/current-stable/. Even the upstream source tarball
is not in line with the manuals on the website. According the manual on
http://doc.ntp.org/current-stable/confopt.html it is now possible to
use a minimal poll interval of 3.

Thanks to your inputs I started playing around with minpoll and maxpoll.
Looks like on my setup a maxpoll of 10 is too high, as the accumulated
time error starts to increase notably from poll interval >6.

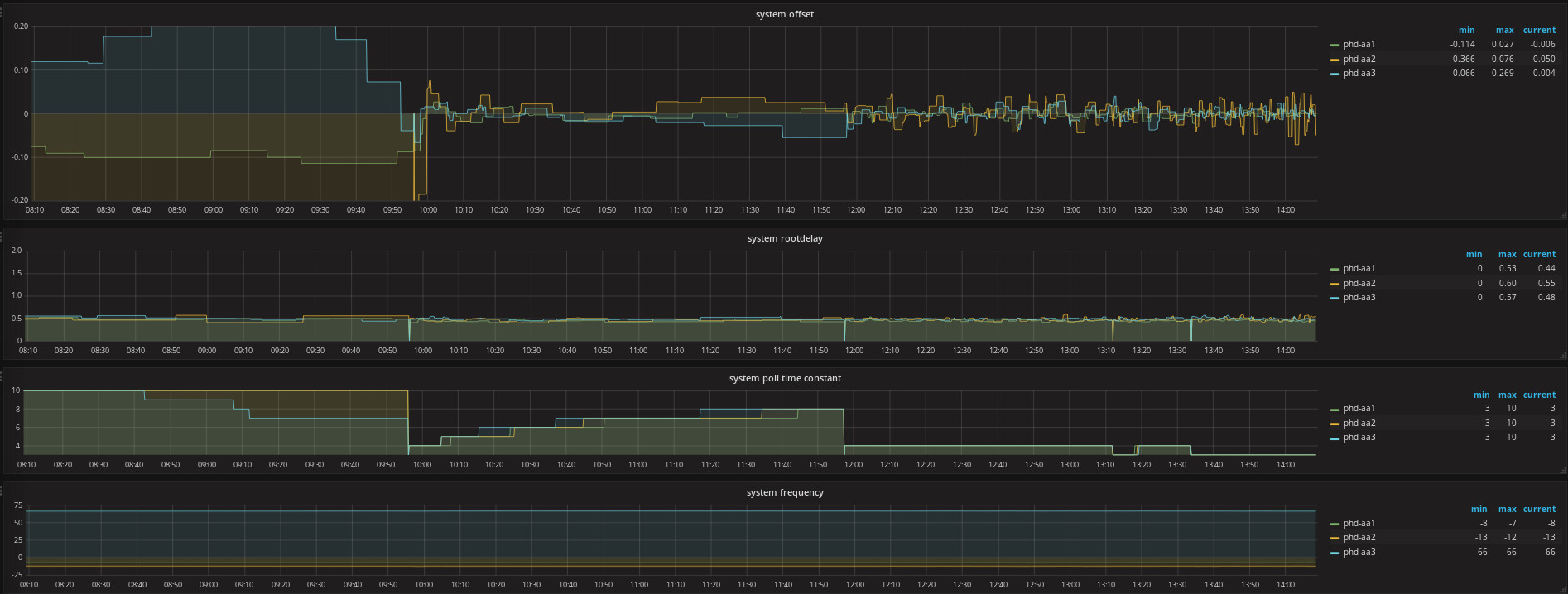

See attached graph (ntp_graph_phd-aa_20170908.png) or
https://people.phys.ethz.ch/~rda/img/ntp_graph_phd-aa_20170908.png

I also noticed, that a higher rootdelay or the variation of the delay
has a big impact on the time offset. Under normal conditions we have
a delay of 0.3 - 0.4 ms in our local network (offset: ~0.050 ms). But
the servers which are in the same subnet as our ntp servers sometimes
have to make ARP requests if the poll interval is higher. The ntp server
has to do the same. This results in a root delay of ~1.5ms, which I
think confuses ntp which in turn results in offsets of 0.500-1.500 ms.

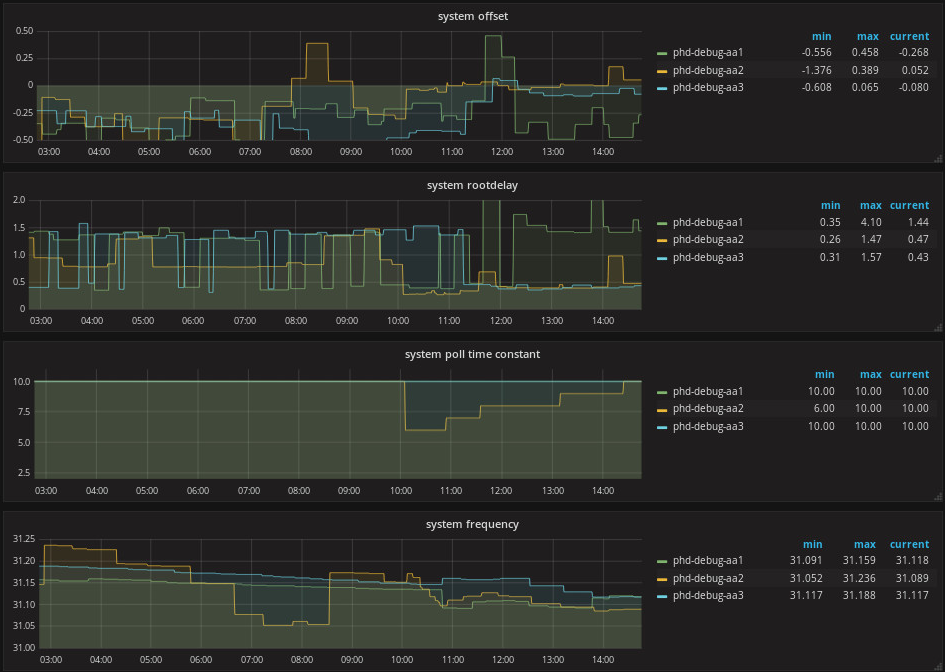

See attached graph (ntp_graph_phd-debug-aa_20170908.png) or
https://people.phys.ethz.ch/~rda/img/ntp_graph_phd-debug-aa_20170908.png

# ntptrace
localhost: stratum 2, offset 0.000008, synch distance 0.031825
time1.ethz.ch: stratum 1, offset -0.000001, synch distance 0.000298,
refid 'PPS'

# ntpq -c pe
     remote           refid      st t when poll reach   delay   offset
jitter

============================================================================

==
 LOCAL(0)        .LOCL.           5 l 149m   64    0    0.000    0.000
0.000
*time1.ethz.ch   .PPS.            1 u  251  256  377    0.426    0.009
0.026
+time2.ethz.ch   .PPS.            1 u   64  256  377    0.430   -0.003
0.019

Looks like the time offset is only a few microseconds once ntp is in sync.

Yes, looks good.

Also note for Linux (on most platforms) and NTP one problem is that the
frequency correction needed for the clock can vary significantly between

boots;

thus the tijme for "perfect sync" can be quite long. See attached image for

an

example.

This is very interesting, we will look further into this.
I am thinking about waiting in the startup process until ntp is in
"perfect sync"and start slapd after that. Maybe I can use the loopstats
file to check/automate this.

Perfect sync can take quite some time (due to design of NTP) [From RFC 1305:
"This yields a PLL risetime of
about 52 minutes, a maximum overshoot of about 4.8 percent in about 1.7 hours
and a settling time
to within one percent of the initial offset in about 8.7 hours."]
The good thing is that NTP itself provides performance numbers to check. Maybe
start with clk_wander being low,  rootdisp being low, and offset being low.
There are some pathological cases where the numbers are low while the clock in
in a bad condition.

Thanks, monitoring these numbers using graphs helps me a lot. I am looking
forward to the results of some long term tests with different settings, to
see what gives the most stable and accurate time for our ldap servers.

Updating one entry on different servers within a very short time (shorter

than

the time of syncing) will probably cause trouble. What real-life situation
causes such?

Probably none. But we have a logparser, which writes "last use" statistics
of our users to ldap, this is done in "realtime". We also use openldap as
kerberos KDC database backend, which writes on successful/failed
authentication attempts. The chance is probably very low if the time offset
is lower than the network delay.

Maybe you could centralize the logparser to run on only one host at a time...

Regards,
Ulrich

Kind regards
Sven

Attachment: ntp_graph_phd-aa_20170908.png
Description: PNG image

Attachment: ntp_graph_phd-debug-aa_20170908.png
Description: PNG image
